ALIPLAST - IMPERIAL 800

ALIPLAST - IMPERIAL 800

Provider: ALIPLAST

✔ Door System Designed for High Thermal Insulation Performance
✔ The system is compatible with the Imperial window system – thanks to the adapter profile models from the IP800 series, it can be seamlessly integrated with Imperial shop windows.
✔ The system has excellent anti-burglary properties (the lock is positioned away from the outer side of the profile).
✔ A thermal insulation threshold, which can be removed after the door is installed in the frame, if needed.
✔ Profile bending option.
✔ The system is also available in a version with improved thermal insulation (IP800i, IP800i+), achieved by applying special thermal inserts placed between the insulators and around the glass; such a solution improves the profile's insulation by 0.2 – 0.5 W/m²K.
✔ Possibility to install a glass unit with a maximum thickness of 48 mm. View details

  • Contact us now for a personalized offer and free consultation!


  • A wide range of available colors – RAL palette (Qualicoat 1518), structured colors, Aliplast Wood Color Effect wood imitation, Aliplast Loft View stone imitation (Qualideco PL-0001), anodized colors (Qualanod 1808), and bi-colored options.

normal.jpg?v=1682068744

TECHNICAL SPECIFICATION

SYSTEM MATERIAL

DEPTH OF FRAME

DEPTH OF LEAF

GLAZING RANGE TYPE OF DOORS

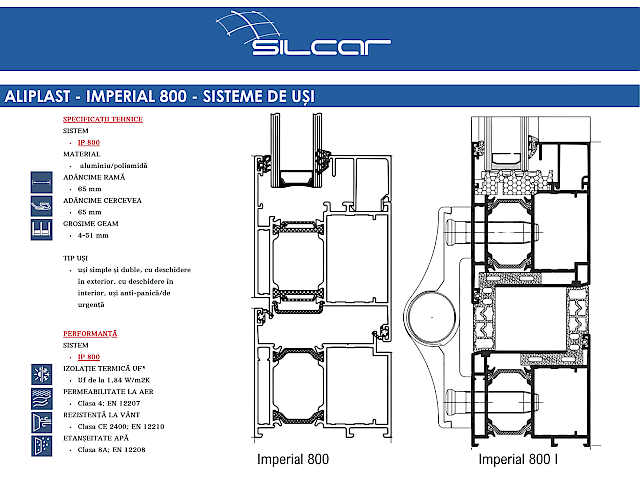

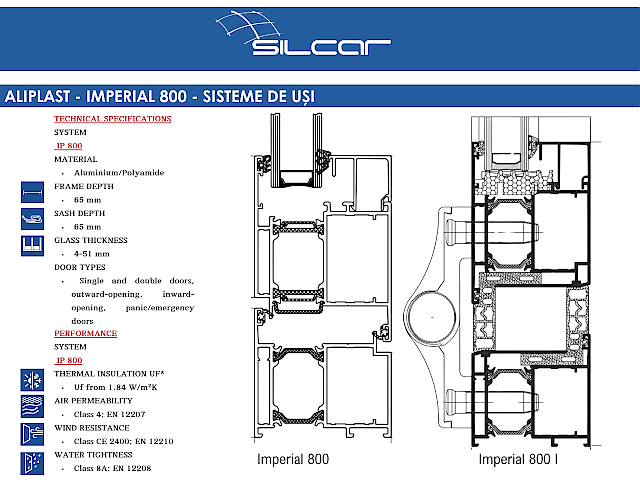

IP800

aluminium/polyamide

65 mm 65 mm 4-51 mm single and double doors, outside opening, inside opening, panic doors

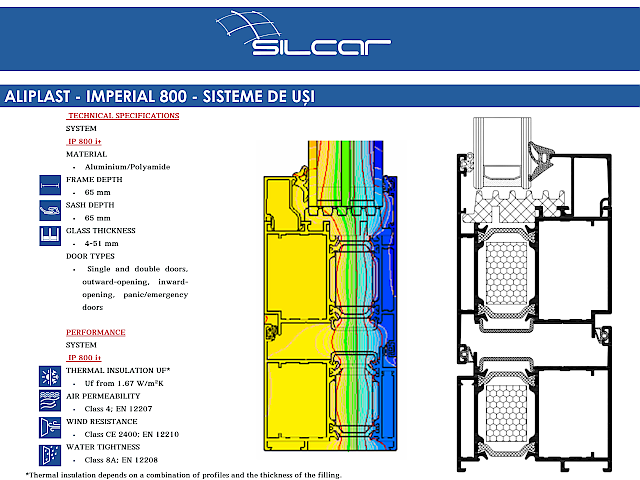

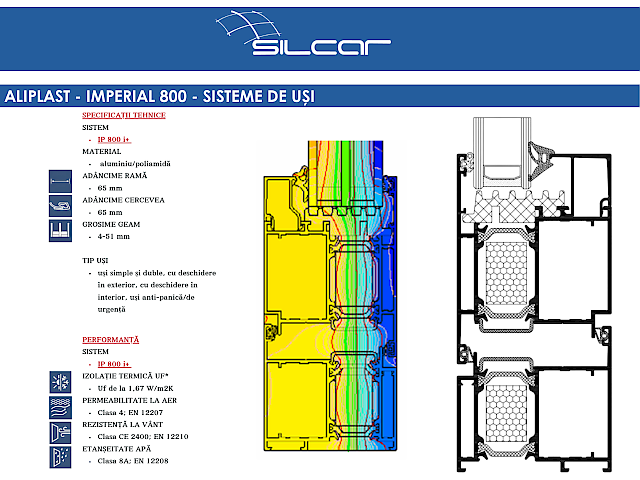

IP800 i+ aluminium/ polyamide 65 mm 65 mm 4-51 mm single and double doors, outside opening, inside opening, panic doors

PERFORMANCE

SYSTEM THERMAL INSULATION UF*

AIR PERMEABILITY

WINDLOAD RESISTANCE

WATERTIGHTNESS
IP800 Uf from 1,84  W/m2K Class 4; PN-EN 12207  Class CE 2400; EN 12210 Class 8A; PN-EN 12208
IP800 i+ Uf from 1,67  W/m2K Class 4; PN-EN 12207  Class CE 2400; EN 12210 Class 8A; PN-EN 12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling
