ALIPLAST - IMPERIAL

  • Imperial - SISTEME DE FERESTRE

ALIPLAST - IMPERIAL

Provider: ALIPLAST

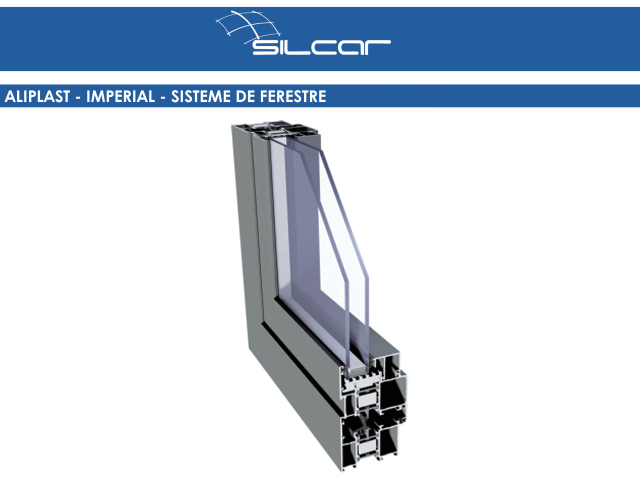

✔ The system is designed for windows, doors and shop windows with high thermal insulation parameters.
✔ High thermal insulation power was achieved by applying special thermal inserts slid between thermal separators and around the glass pane.
✔ Window installation option in curtain wall systems.
✔ Profile shapes adapted to the installation of various types of perimeter hardware, including concealed hinges and PVC hardware.
✔ Possible profile bending.
✔ The system is designed for use in residential and public buildings, and also allows designing modern window solutions in multiple variants

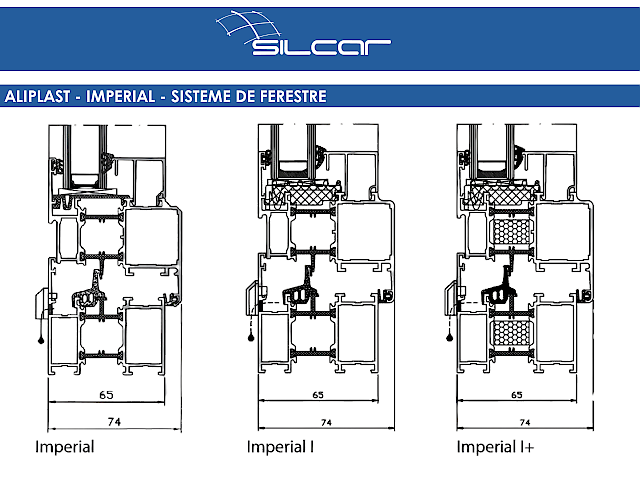

✔ Design of systems IP i, IP i+ is based on proven, extensive and recognized base system Imperial.
✔ Possibility to install glass unit up to 48 mm. View details

  • Contact us now for a personalized offer and free consultation.
  • sAamNGqdmyG5afoCKXHVUs3sZL1bQ0nd.gif







    A wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour.

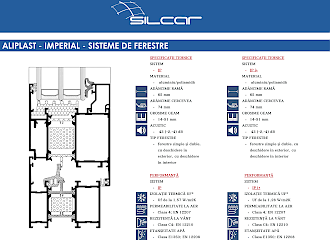

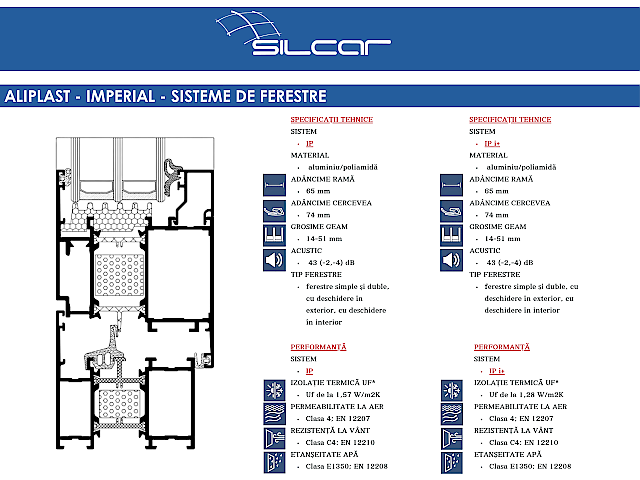

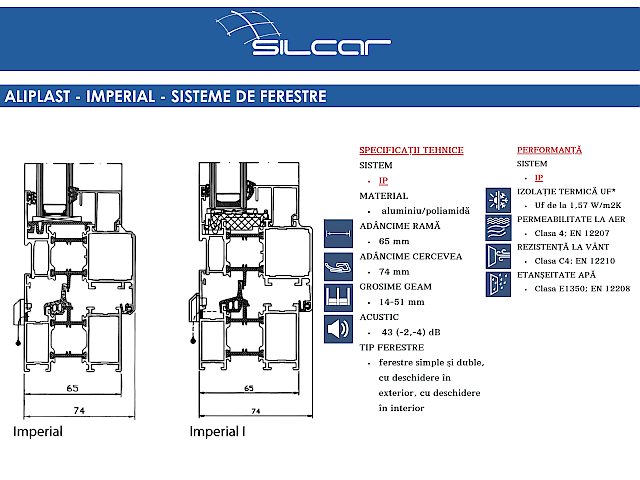

TECHNICAL SPECIFICATION

SYSTEM MATERIAL

DEPTH OF FRAME

DEPTH OF LEAF

GLAZING RANGE ACOUSTIC TYPE OF WINDOWS
IP i aluminium/ polyamide  65 mm 74 mm 14-51 mm 43 (-2,-4) dB single and double windows, outside opening, inside opening

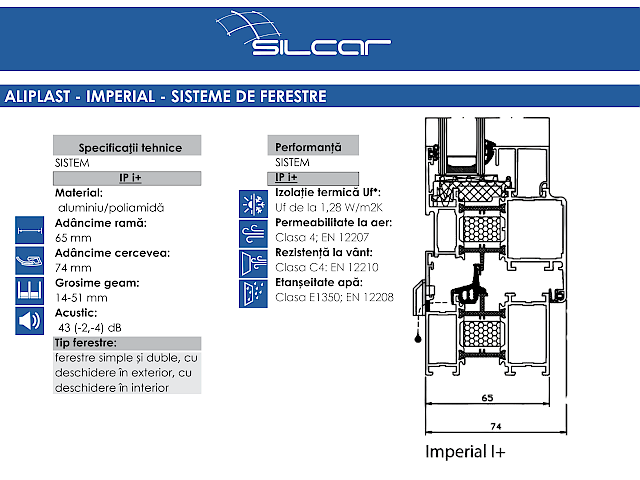

IP i+ aluminium/ polyamide 65 mm 74 mm 14-51 mm 43 (-2,-4) dB single and double windows, outside opening, inside opening

PERFORMANCE

SYSTEM THERMAL INSULATION UF*

 AIR PERMEABILITY

WINDLOAD RESISTANCE

WATERTIGHTNESS
IP i Uf from 1,57 W/m2K Class 4; EN 12207 Class C4; EN 12210 Class E1350; EN 12208
IP i+ Uf from 1,28  W/m2K Class 4; EN 12207 Class C4; EN 12210 Class E1350; EN 12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling
